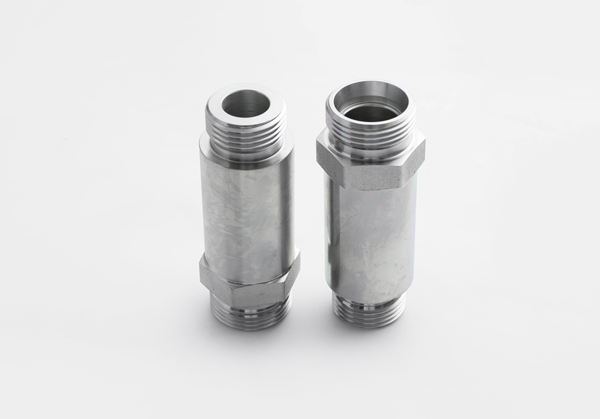

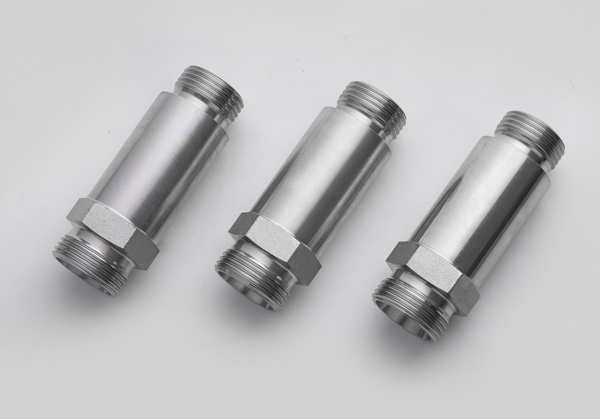

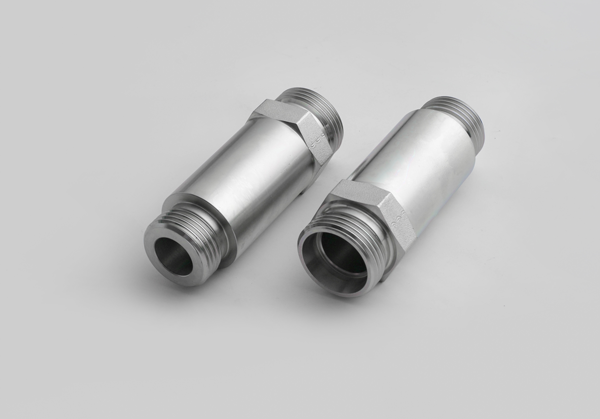

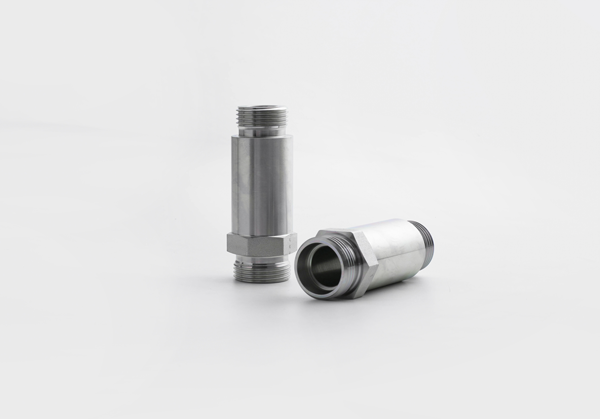

加长端直通接头

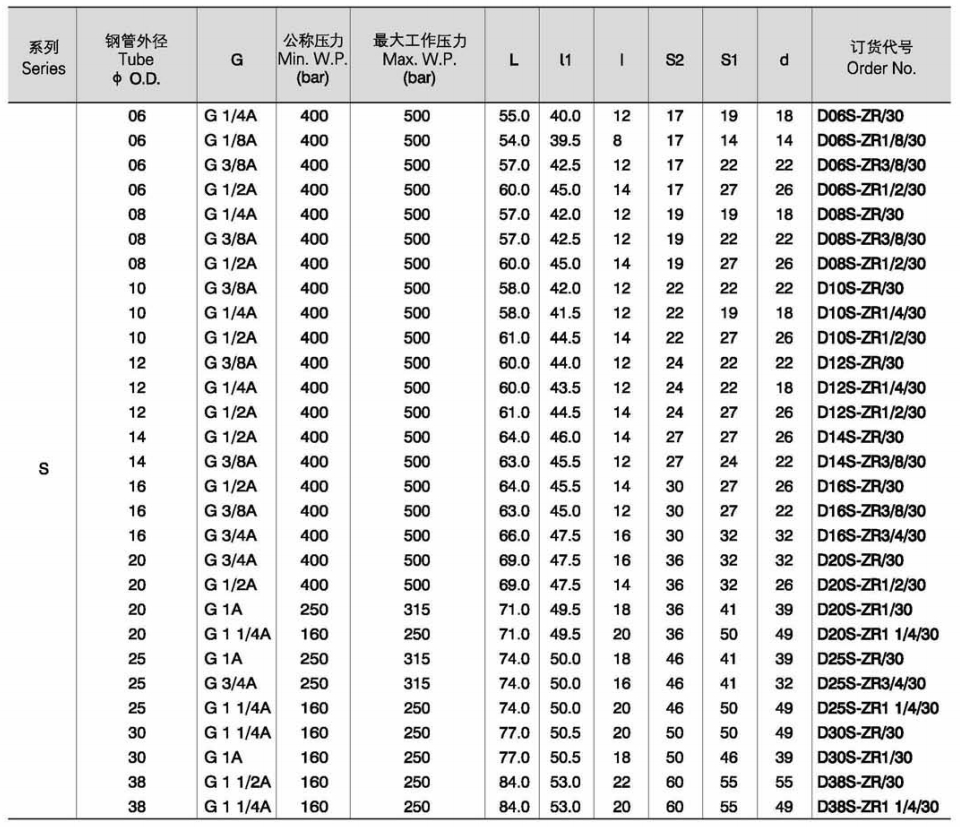

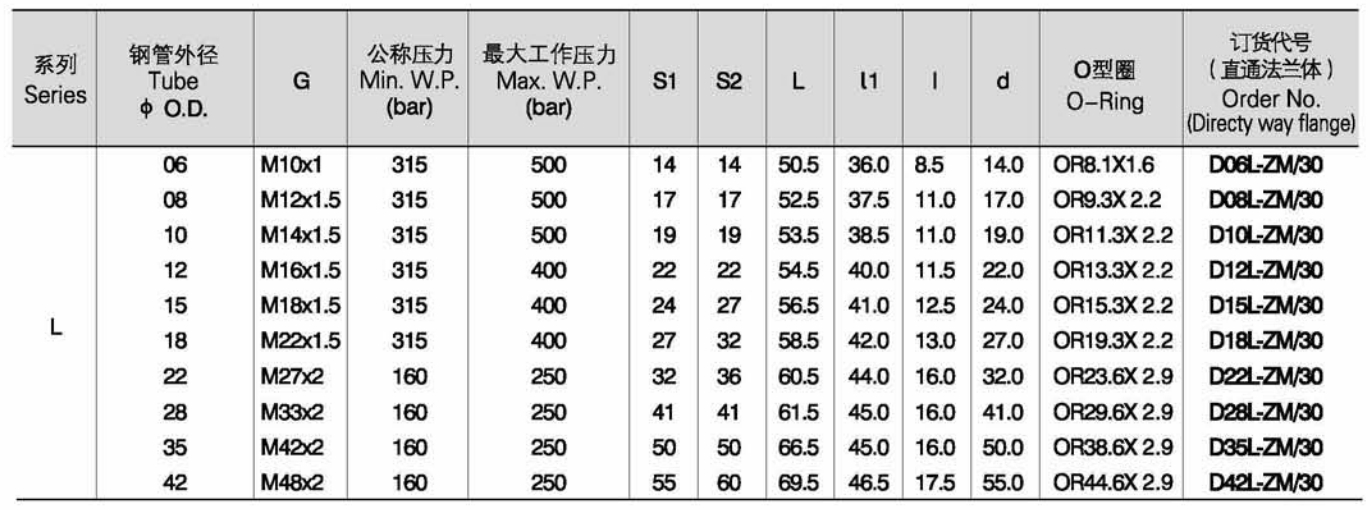

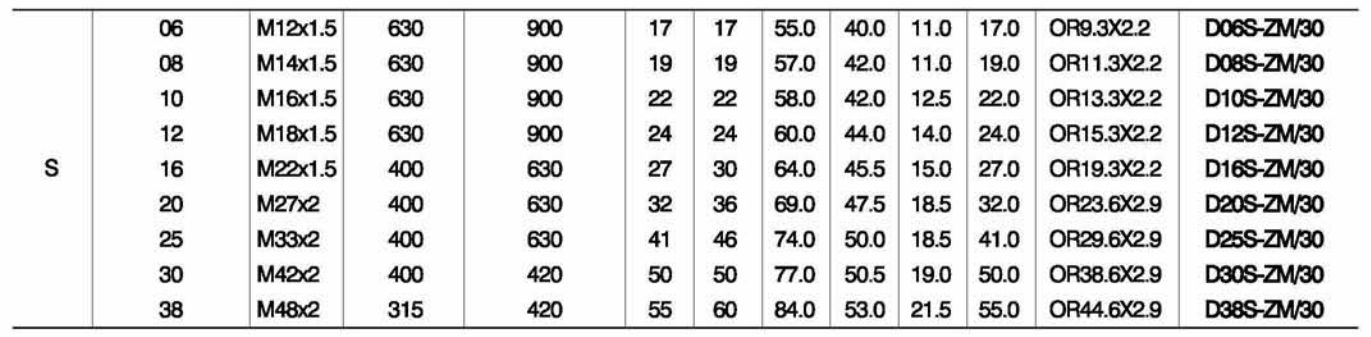

性能参数

不带螺母和卡套时的订货代号示例:D10L-ZM/30X("/30"随l的变化而变化，若当l=40时，

不带螺母和卡套时的订货代号示例:D10L-ZM/40X)

如需不锈钢接头订货代号示例:D10L-ZM/3071

Code example for order without nut and ferrule:D10L-ZM/30X(“/30" is changed with the change of l;

when l is equal to 40, Code example for order without nut and ferrue is D10L-ZM/40X)

Code example for order with stainless steel fitting:D10L-ZM/3071

不带螺母和卡套时的订货代号示例:D10S-ZR/30X("/30"随l的变化而变化，若当l=40时，

不带螺母和卡套时的订货代号示例:D10S-ZR/40X)

如需不锈钢接头订货代号示例:D10S-ZR/3071

Code example for order without nut and ferrule:D10S-ZR/30X(“/30" is changed with the change of l;

when l is equal to 40, Code example for order without nut and ferrue is D10S-ZR/40X)

Code example for order with stainless steel fitting:D10S-ZR/3071
